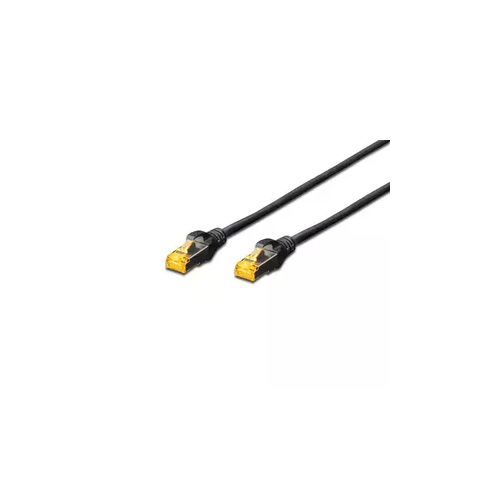

Patch cable CAT6A 0.5m black

Item number
50032

In Stock

Product information

Technical Specification

Size
0.5
Colour
Schwarz
Warranty
months

Shipping

Weight (kg)
0
Height (mm)
0
Width (mm)
0
Depth (mm)
0

Description

With LSZH outer jacket (Low Smoke Zero Halogen) for the best fire behavior and low smoke emission. Transparent yellow colored plug with metal shielding for easy identification of category 6A (500 Mhz) Inner conductor: copper (Cu); PoE+ compatible; The patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 6A standard. They guarantee that the cable installation complies with the ISO & EN Channel specification and offer excellent performance in CAT 6A cabling. The performance has been tested up to 500 MHz, including performance characteristics such as near-end crosstalk (NEXT). The patch cables have been specially developed to fully meet all requirements in the various application areas. Each cable is equipped with a molded anti-kink grommet with strain relief. The grommet also has a latching lever protection, which prevents the cable from snagging and the latching lever from breaking off the plug. The yellow coloring of the plugs makes it easy to identify category 6A. 2x R
J45 plugs (8P8C) Hoods with kink protection, strain relief and locking lever protection Length designation on the hoods.
