OPAL home storage set 3: HS 5-5-1P

Technical Specification

Power Class

5 kW

Battery Voltage

48 V

Inverter type

On & Off-Grid

Phases

1

Display

Yes

Frequency (Hz)

50/60

AC Voltage

230 V

Peak Power

5.5 kW

Max. charge current

120 A

Charge controller type

MPPT

Warranty

60 months

Shipping

Weight (kg)

60

Height (mm)

Width (mm)

Depth (mm)

Description

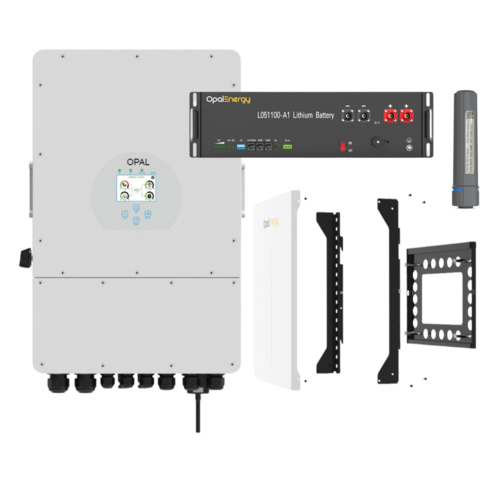

Opal home storage set 3: Inverter 5kW,1-Phase / Battery 5kWh includes:

• 1x Opal-5K-1P-EU (Hybrid inverter includes connection for PV and Battery - 5kW - 1-Phase)
• 1x Opal L051100-A1 (LFP energy storage battery 5.1kWh-51.2V)
• 1x Opal C300 (Wall mounting component for the battery)
• 1x Opal CA04 (Output power cable)
• 1x Opal T300A (Wifi stick)

Opal 5K-1P-EU hybrid inverter includes connections for PV and battery storage systems (low voltage 51.2V). It is suitable for residential and light commercial uses, maximizing self-consumption rate of solar energy and increasing energy independence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via these hybrid inverters. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout. It equipped with RS485/CAN port for battery communication. The system can be expanding up to 16 inverters. A CT is included with the inverter with a cable length of 1 m.

Opal Energy storage lithium iron phosphate batteries produced by the world leading cell manufacturer CATL, are known for high power, pollution-free and maintenance-free operation. These batteries offer attributes like high specific power, long life and efficient charging. The power system, featuring a solid design and advanced production, is a single-connection system of 16x100Ah CATL cells in series and are divided into two modules, each module carries 8 cells. The modular pack easily expands without an extra BMS, and the energy storage system provides dual outputs with main control. Standard CAN and RS485 interfaces enable comprehensive monitoring of each battery cell and the entire power system.

Note: The warranty condition for the inverter is 5 years.For the Battery, the basic limited product warranty is 5 years while the limited performance warranty period is 10 years.

Note: Please regard local regulations.
