OPAL home storage set 2: HS 12-15-3P

Technical Specification

Power Class

12 kW

Battery Voltage

48 V

Inverter type

On & Off-Grid

Phases

3

Display

Yes

Frequency (Hz)

50/60

AC Voltage

400 V

Peak Power

13.2 kW

Max. charge current

240 A

Charge controller type

MPPT

Warranty

60 months

Shipping

Weight (kg)

160

Height (mm)

Width (mm)

Depth (mm)

Description

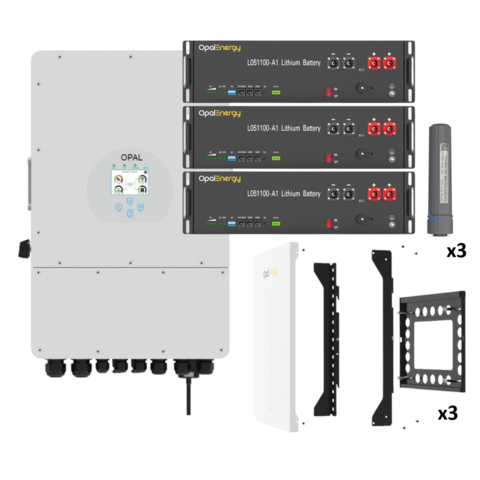

Opal home storage set 2: Inverter 12kW,3-Phase / Battery 15kWh includes:

• 1x Opal-12K-3P-EU (Hybrid inverter includes connection for PV and Battery - 12kW - 3-Phase)
• 3x Opal L051100-A1 (LFP energy storage battery 5.1kWh-51.2V)
• 3x Opal C300 (Wall mounting component for the batteries)
• 1x Opal CA04 (Output power cable)
• 2x Opal CA05 (Battery parallel power and communication cable)
• 3x Opal T300A (Wifi stick)

Opal 12K-3P-EU is a three phase hybrid inverter that includes connections for PV and battery storage systems (low voltage 51.2V). This inverter is equipped with two MPPT´s, ensuring that the system is safe and reliable. With compact design and high-power density, it supports 1.3 DC/AC ratio (saving device investment) and three phase unbalanced output, thus extending the application scenarios. It is equipped with CAN port (x2) for BMS and parallel connection, x1 RS485 port for BMS, x1 RS232 port for remote control, x1 DRM port, which makes the system smart and flexible. The system can be expanded up to 16 inverters. CT´s are included with the inverter with a cable length of 1 m.

Opal Energy storage lithium iron phosphate batteries produced by the world leading cell manufacturer CATL, are known for high power, pollution-free and maintenance-free operation. These batteries offer attributes like high specific power, long life and efficient charging. The power system, featuring a solid design and advanced production, is a single-connection system of 16x100Ah CATL cells in series and are divided into two modules, each module carries 8 cells. The modular pack easily expands without an extra BMS, and the energy storage system provides dual outputs with main control. Standard CAN and RS485 interfaces enable comprehensive monitoring of each battery cell and the entire power system.

Note: The warranty condition for the inverter is 5 years.For the Battery, the basic limited product warranty is 5 years while the limited performance warranty period is 10 years.

Note: Please regard local regulations
