Victron

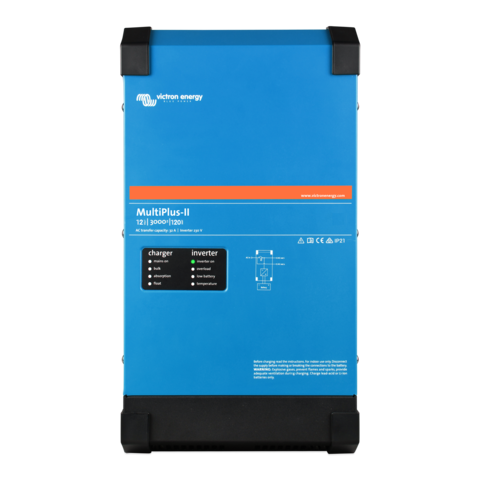

MultiPlus-II 12-3000-120-32
- Item number
- 10258
In Stock
Product information
Technical Specification
- Power Class
- 3 kW
- Battery Voltage
- 12 V
- Inverter type
- On & Off-Grid
- Phases
- 1
- Frequency (Hz)
- 50
- AC Voltage
- 230 V
- Peak Power
- 6 kW
- 30 minutes power
- 0 kW
- Max. charge current
- 120 A
- Charge controller type
- MPPT
- Warranty
- 60 months
Shipping
- Weight (kg)
- 20
- Height (mm)
- 275
- Width (mm)
- 546
- Depth (mm)
- 147
Description
The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.Manufacturer info
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Its products are widely considered to be the professional choice for independent electric power. Efficiently combining two or more distinct power sources is what Victron does best. Victron products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, lead and lithium batteries, battery monitors, solar charge controllers, complete on-grid solutions and many other innovative solutions.
