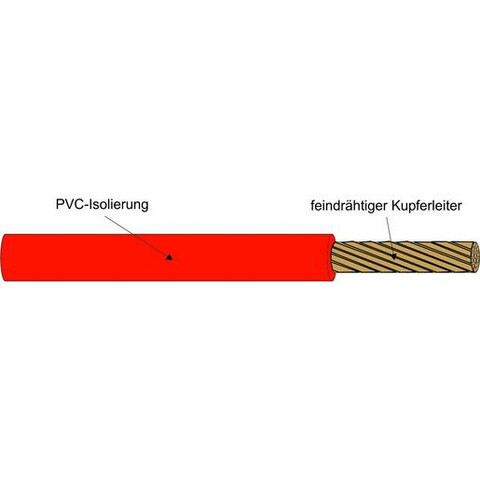

H07V-K-2,5mm2 Connection and control cable PVC sheath Red (100m Roll)

Technical Specification

Number of cores

1

Size

2.5

Colour

Rot

Nominal voltage

450 V

Warranty

months

Shipping

Weight (kg)

5

Height (mm)

0

Width (mm)

0

Depth (mm)

0

Description

Use: For connecting heat devices, commercial tools, moving devices and machines, with medium mechanical stress in dry and damp rooms, outdoors and in potentially explosive areas, as well as in commercial and agricultural operations and construction sites. The cables may be permanently installed in temporary buildings or construction sites as well as on conveyor systems and machines. Core colors: according to DIN VDE 0293. Outer sheath: Color: black. Temperature range: for mobile use -25 to +60 °C; for fixed installation -40 to +60 °C. Technical data: Rated voltage Uo/U = 450/750 V~; for fixed and protected installation in pipes or devices also approved for 600/1000 V. Minimum bending radius: for fixed installation: 4 x outside diameter; with movable use: 6 x outside diameter. Color: Black.Please note that metal prices are included in the product price.
